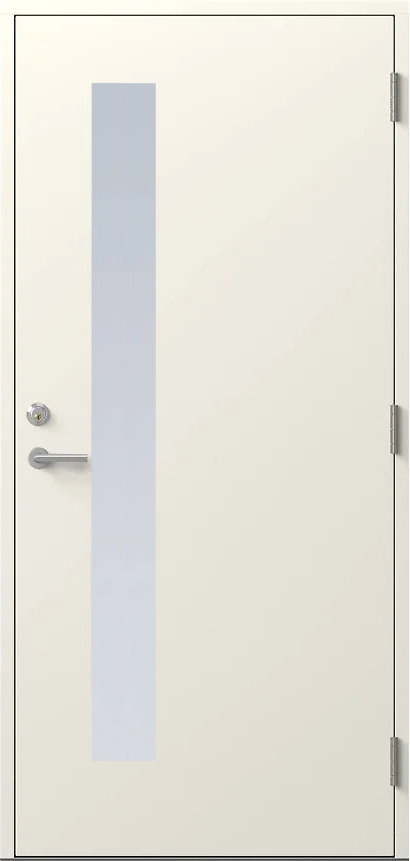

Optimal

Other information

Use Doors for use externally in houses and apartments
Thermal transmittance U=0,91 W/m2K panel doors, U=1,2 W/m2K glass doors
Door type Outside opening (for Danish market - DK model inwards opening)
Sound transmittance 31 dB
Door thickness 62 mm
Decoration White painted S0502-Y, gloss 25, 1 layer - impregnation and priming, 1 layer - painting
Frame, profile Single step profile: 42x105, 42x115, 42x105NOR, 42x115NOR
Bottom section-threshold Hardwood impregnated E26x105, 26x115
Standard accessories Lock: ASSA565. Hinges:3248 - 2 pcs. Seal: S3417. Lock pate: DORMA DS9001
Glass lists -
Glass -
Non-standart size production Available for all models at master plus
Decoration according NC and RAL No available
Other glazing options No available
Other lock case and hinges No available
Product quality warranty 5 years, factory guarantee
Product quality warranty 7 years, door blade form
Marking CE / European

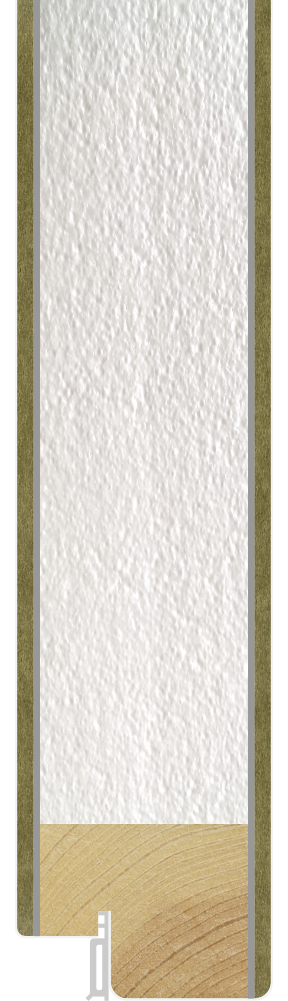

1. HDF panels surface, 3mm

2. Aluminum panels

3. Finger joined pine wood frame

4. Glass package, 2 glasses

5. PVC plastic glass lists

6. Polystyrene core

7. Rubber seals

8. Frames, profiles 42x105,42x115,42x105NOR,42x115NOR

9. Threshold, hardwood, 26x105, 26x115

10. Door thickness 62mm

U=0,91 W/m2K

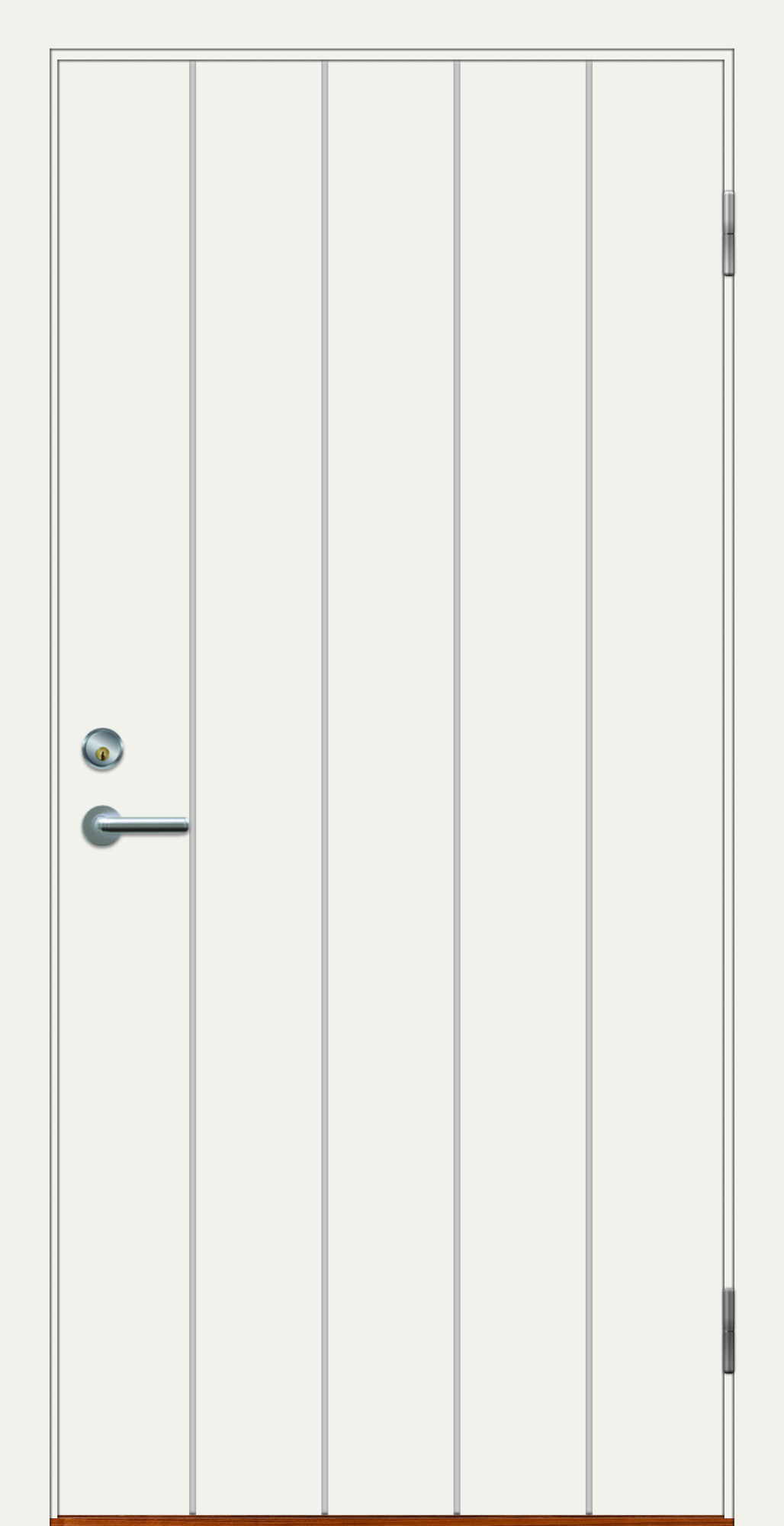

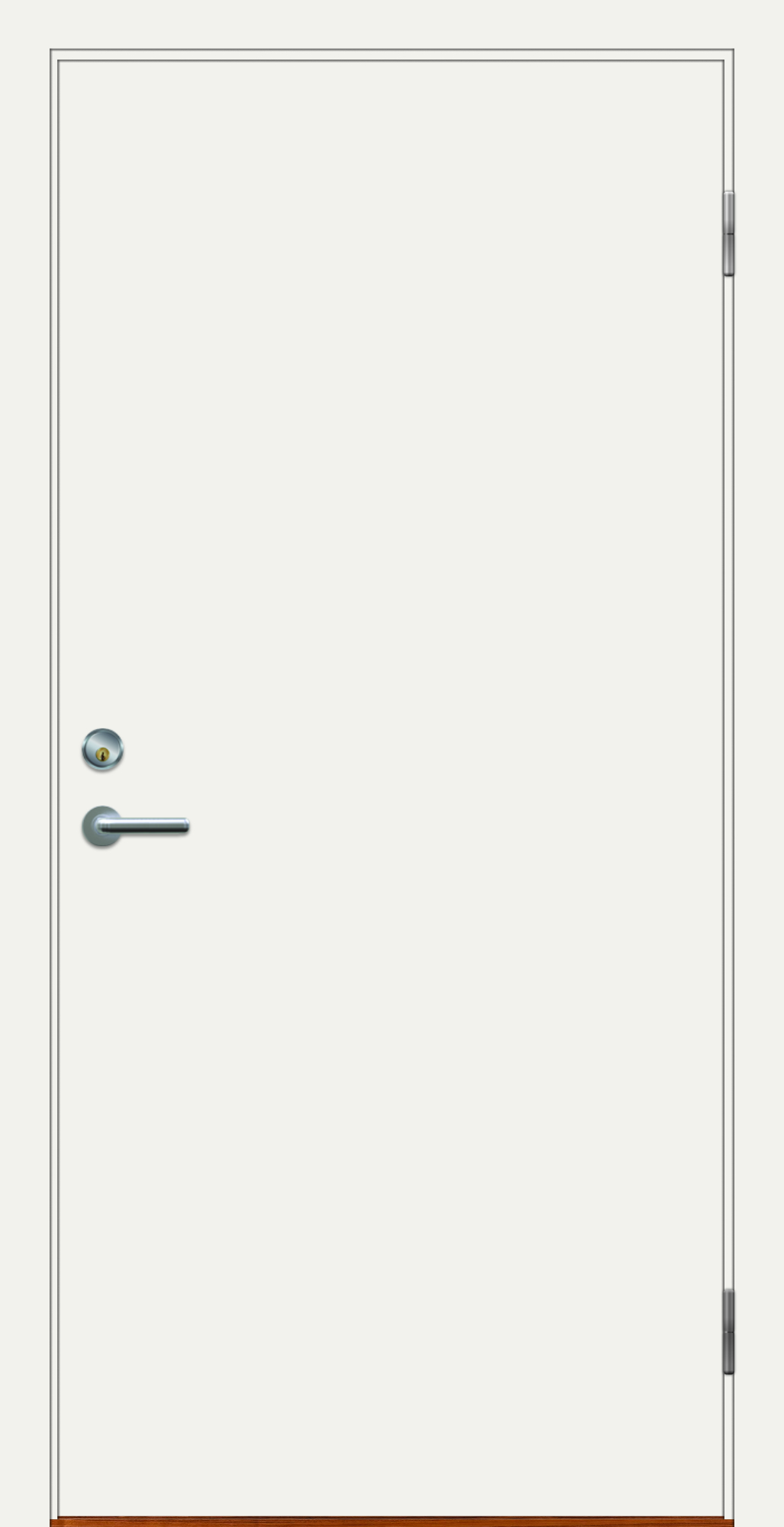

OPTIMAL Line

M size
modul
Door leafsize
dørplademål
Frame outside dimensions
udv. karmmål
Door way
murhulmål
19 x 9 M
1840 x 825
1889 x 886 1900 x 900
19 x 10 M
1840 x 925
1889 x 986
1900 x 1000
20 x 9 M 1940 x 825 1989 x 886 2000 x 900
20 x 10 M 1940 x 925 1989 x 986 2000 x 1000
21 x 9 M 2040 x 825 2089 x 886 2100 x 900
21 x 10 M 2040 x 925 2089 x 986 2100 x 1000

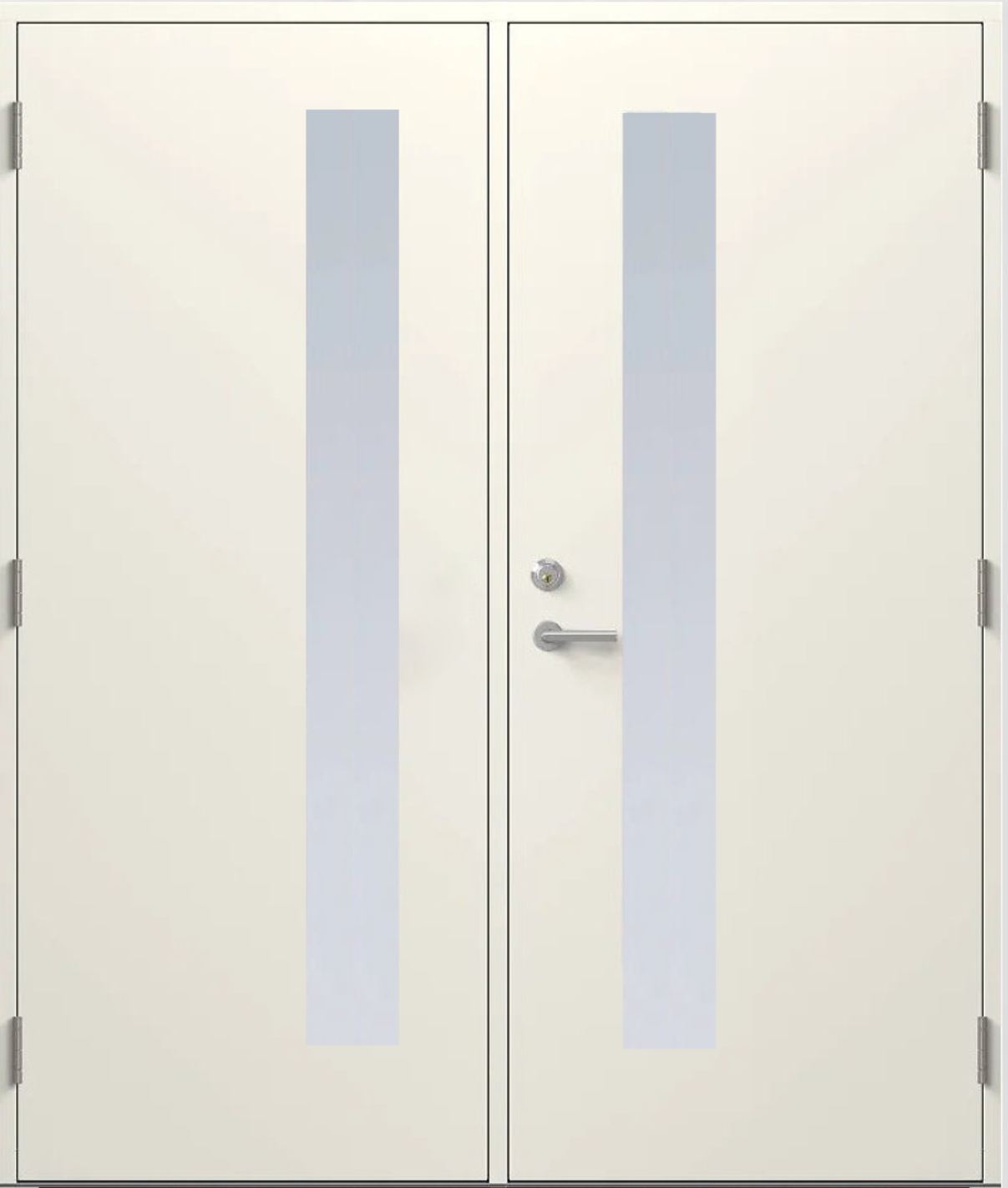

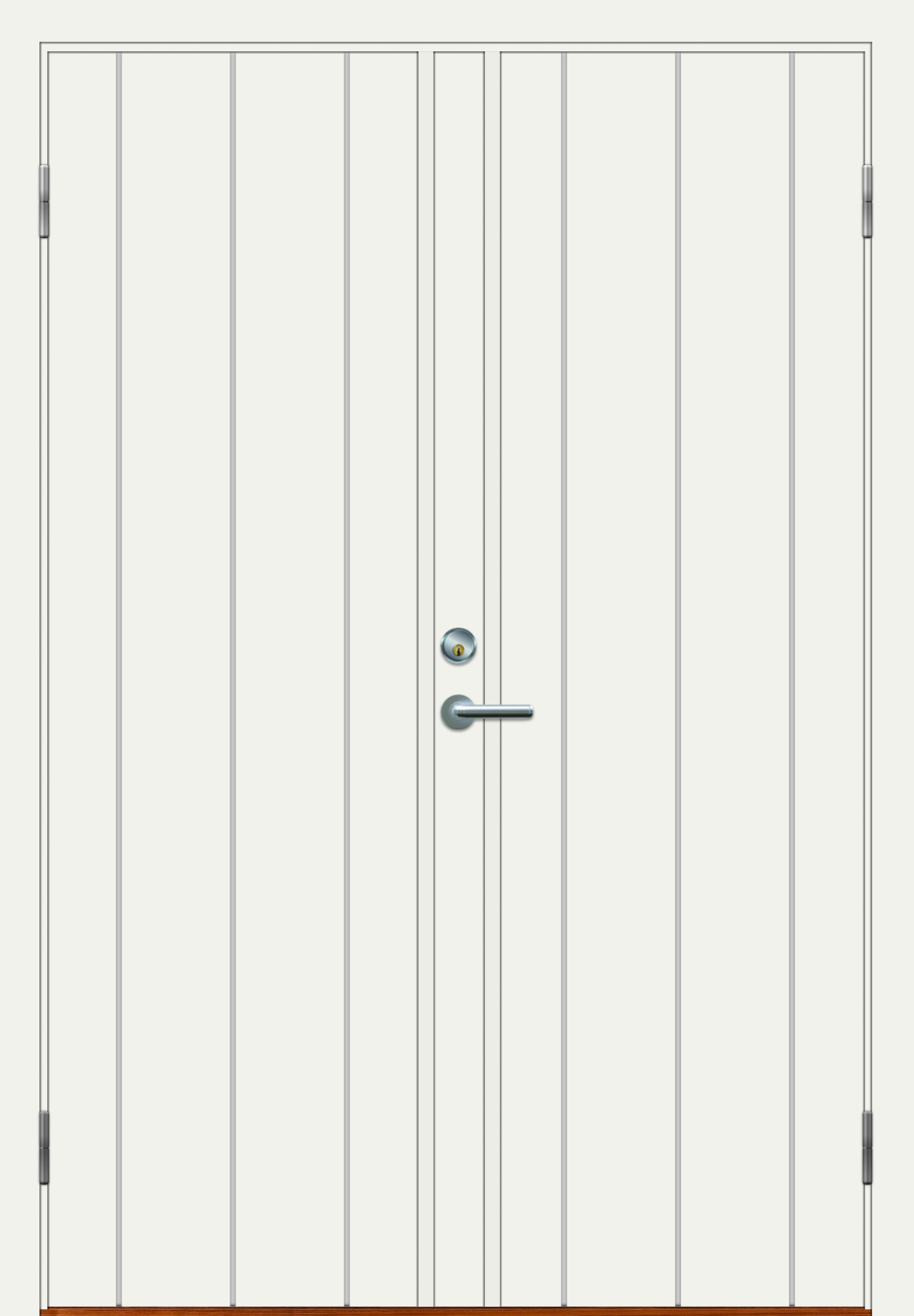

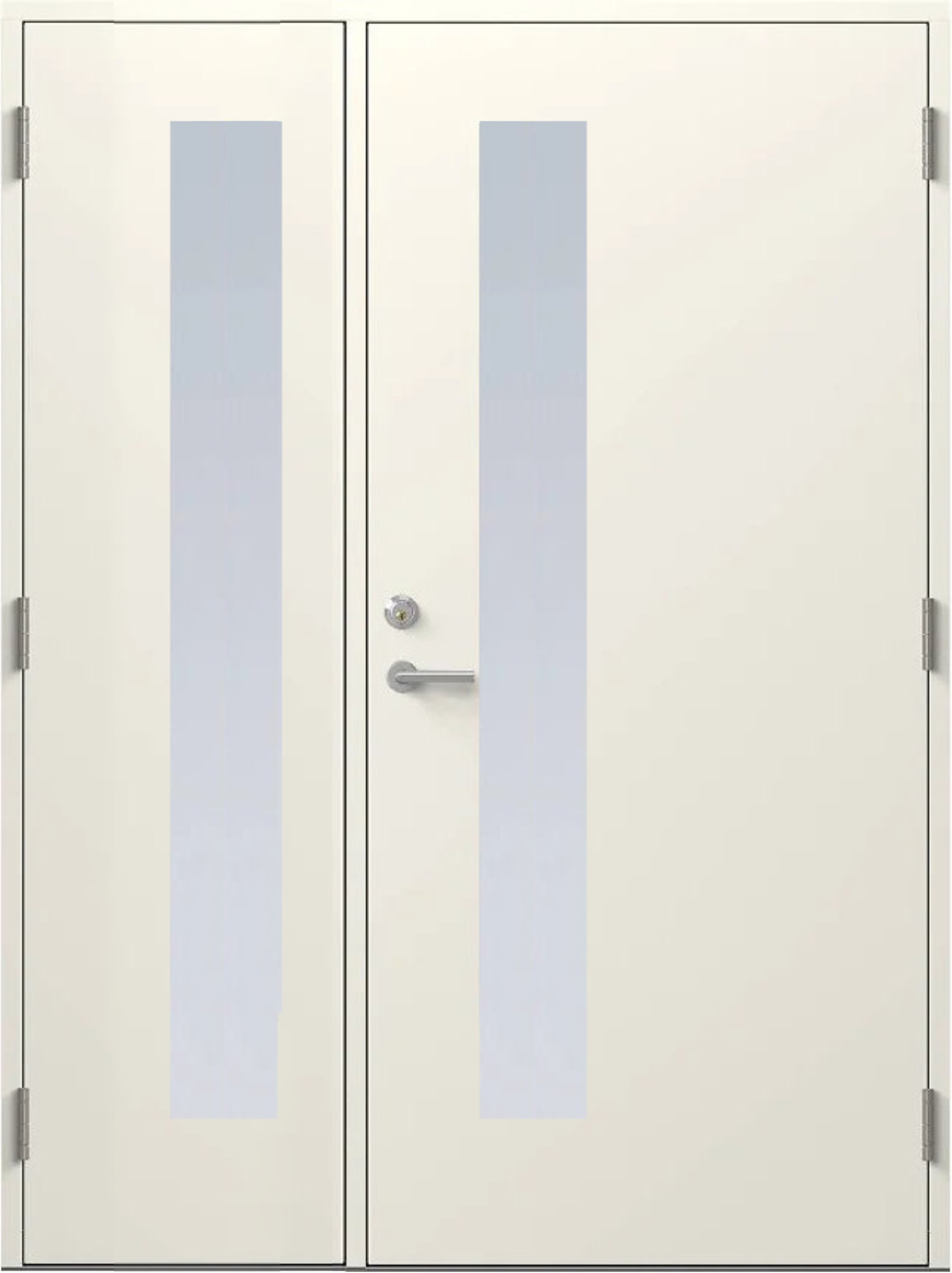

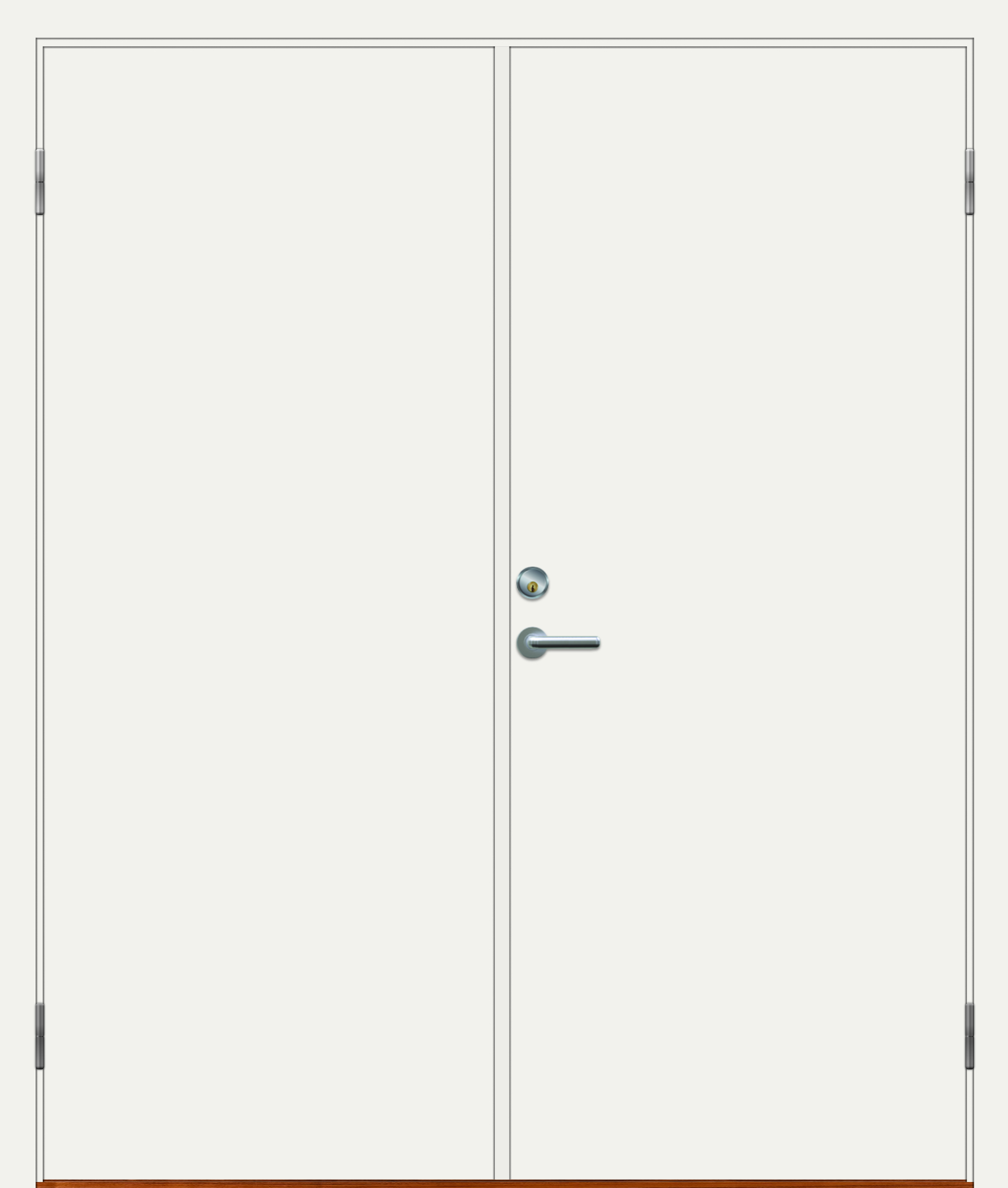

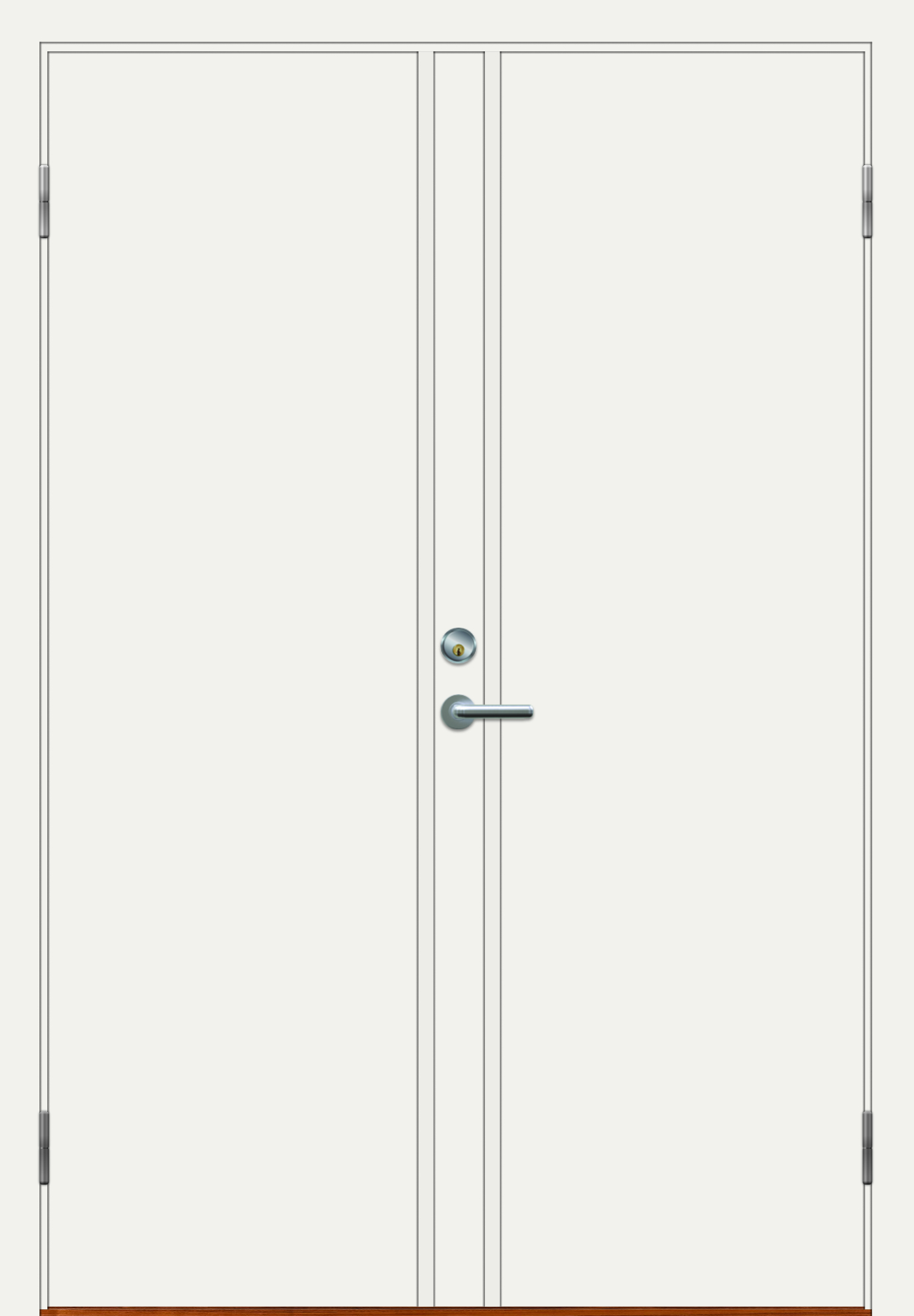

Double door selection

M size
modul
Door leafsize
dørplademål
Frame outside dimensions
udv. karmmål
Door way
murhulmål
19 x 13 M 1840 x 661/561f 1889 x 1286 1900 x 1300
19 x 14 M 1840 x 711/661f 1889 x 1386 1900 x 1400
19 x 15 M 1840 x 761/761f 1889 x 1486 1900 x 1500

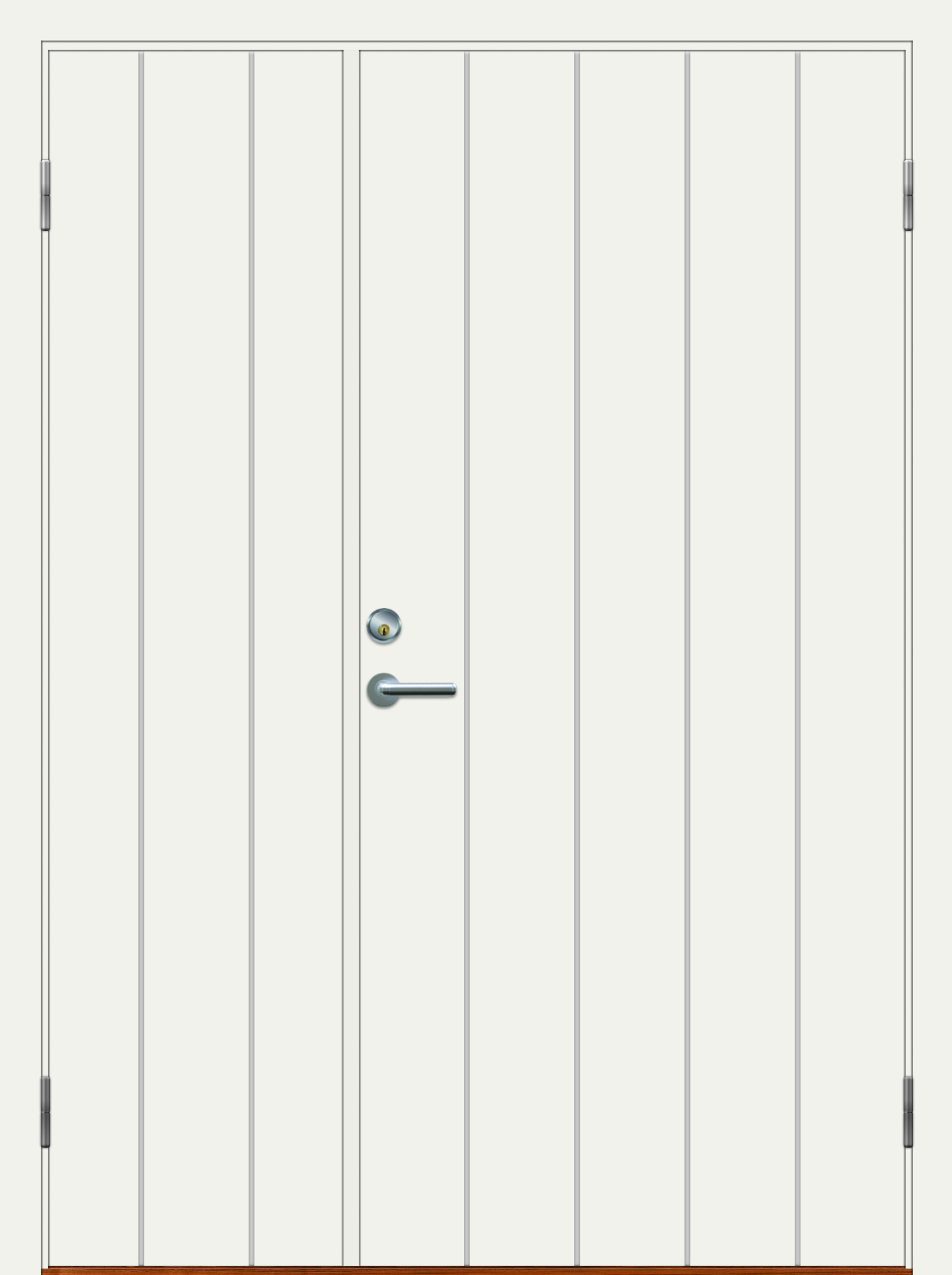

19 x 13.9 M 1840 x 925/409f 1889 x 1398 1900 x 1412
19 x 14.9 M 1840 x 925/509f 1889 x 1498 1900 x 1512

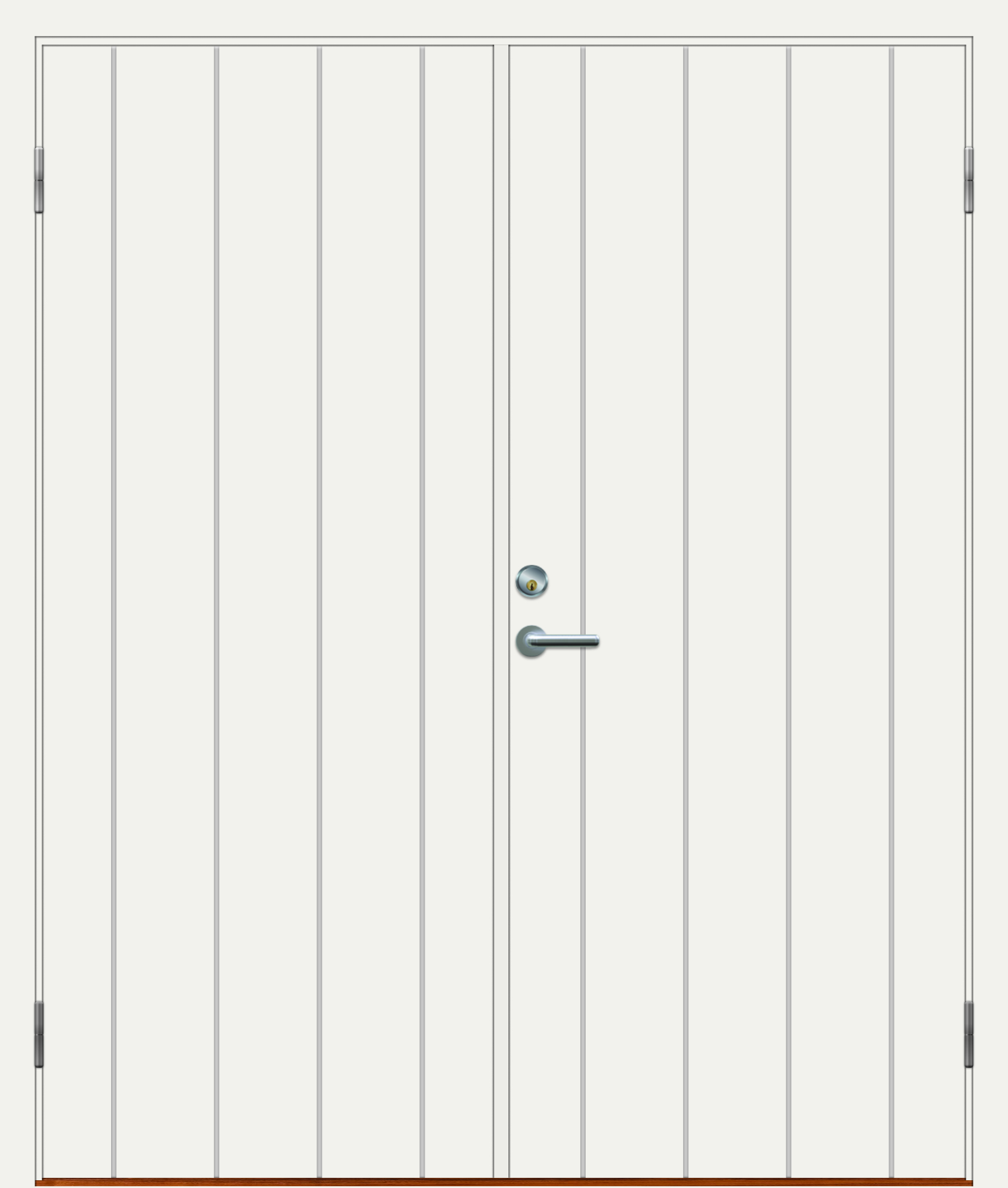

19 x 17 M 1840 x 825/825f 1889 x 1714 1900 x 1728
19 x 19 M 1840 x 925/925f 1889 x 1914 1900 x 1928
20 x 13 M 1940 x 661/561f 1989 x 1286 2000 x 1300
20 x 14 M 1940 x 711/661f 1989 x 1386 2000 x 1400
20 x 15 M 1940 x 761/761f 1989 x 1486 2000 x 1500
20 x 13.9 M 1940 x 925/409f 1989 x 1398 2000 x 1412
20 x 14.9 M 1940 x 925/509f 1989 x 1498 2000 x 1512
20 x 17 M 1940 x 825/825f 1989 x 1714 2000 x 1728
20 x 19 M 1940 x 925/925f 1989 x 1914 2000 x 1928
21 x 13 M 2040 x 661/561f 2089 x 1286 2100 x 1300
21 x 14 M 2040 x 711/661f 2089 x 1386 2100 x 1400
21 x 15 M 2040 x 761/761f 2089 x 1486 2100 x 1500
21 x 13.9 M 2040 x 925/409f 2089 x 1398 2100 x 1412
21 x 14.9 M 2040 x 925/509f 2089 x 1498 2100 x 1512
21 x 17 M 2040 x 825/825f 2089 x 1714 2100 x 1728
21 x 19 M 2040 x 925/925f 2089 x 1914 2100 x 1928

Sidelights


M size
modul

Frame outside dimensions
udv. karmmål
Door way
murhulmål
19 x 4 M 1889 x 398 1900 x 400
20 x 4 M 1989 x 398 2000 x 400
21 x 4 M 2089 x 398 2100 x 400

Danish market profile

M size
modul
Door leafsize
dørplademål
Frame outside dimensions
udv. karmmål
Door way
murhulmål
21,45 x 9,7 M 2067 x 887 2115 x 948 2145 x 970

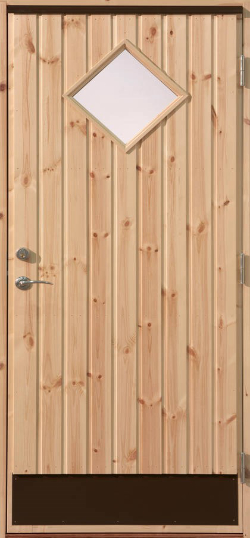

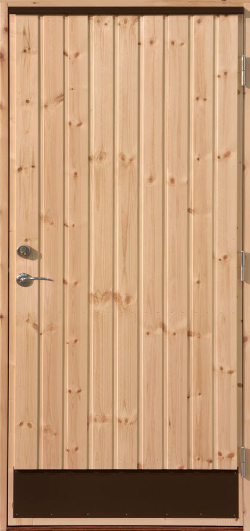

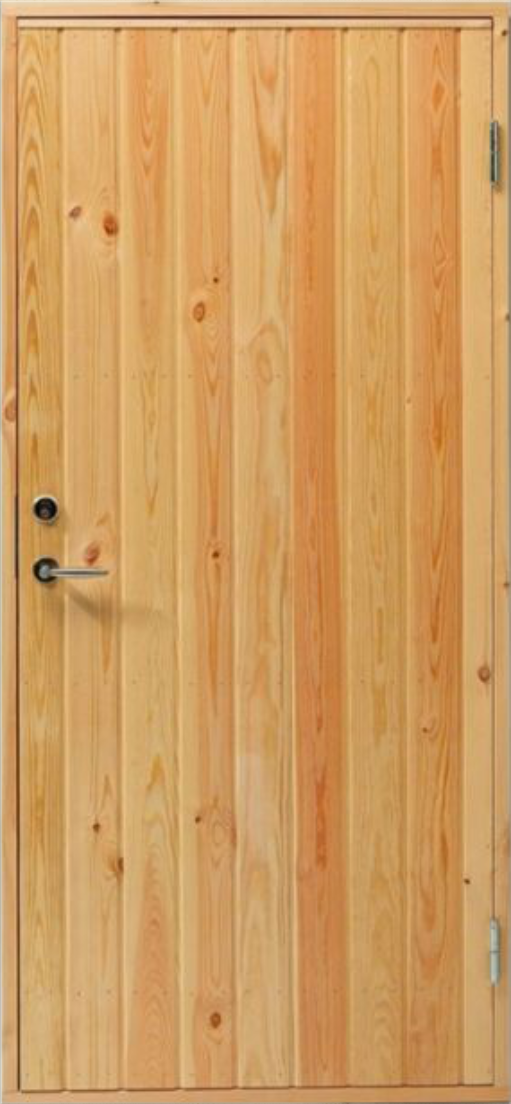

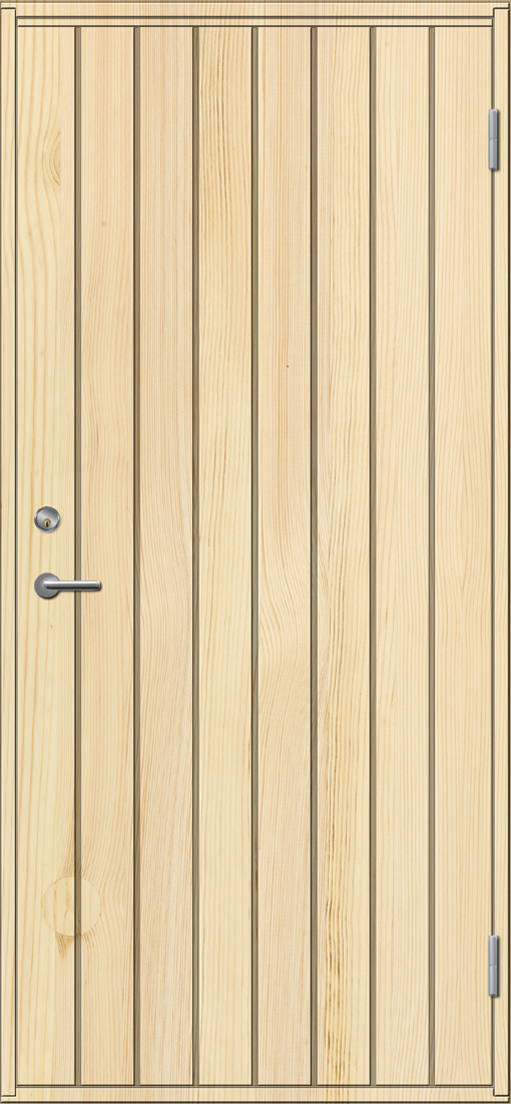

Inward and outward opening way
Use Doors for use externally in houses and apartments
Door type Outside opening (for Danish market - DK model inwards opening)
Sound transmittance 13 dB
Door thickness 40 mm
Decoration Untreated plywood
Frame, profile Single step profile: 42x92NOR
Bottom section-threshold Pine wood 92x42 NOR
Standard accessories Lock: ASSA565. Hinges: - 2 pcs. Seal
Glass lists Pine wood

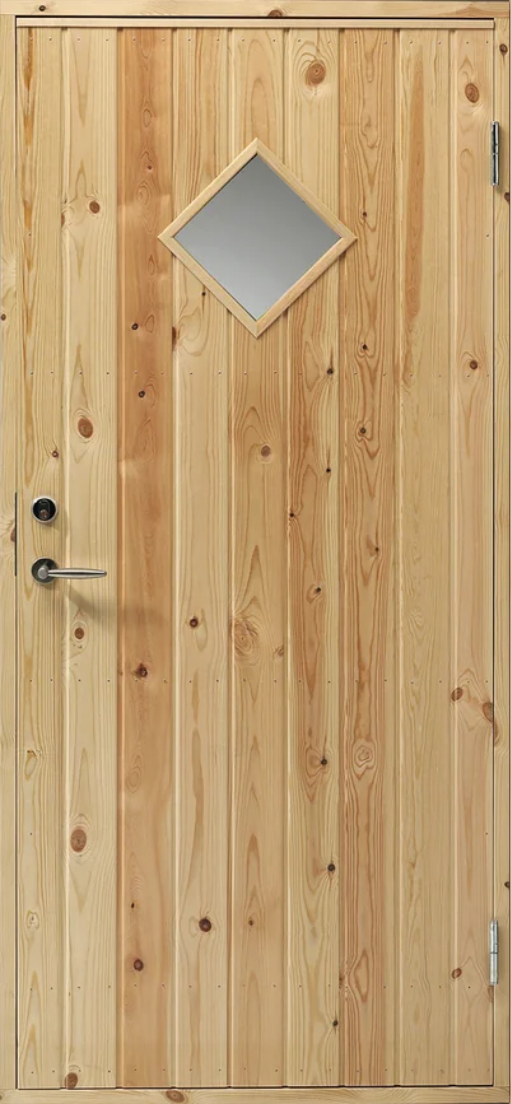

Glass Glazed doors have standardly integrated a transparent single chamber glass packet (2 glasses)
Non-standart size production Available for all models at master plus
Decoration according NC and RAL No available
Other glazing options No available
Other lock case and hinges No available
Product quality warranty 3 years factory guarantee




1. Plywood panels surface, 4 mm

2. Wood frame

3. Wood cap

4. Glass package, 2 glasses

5. Wood glass lists

6. Polystyrene core

7. Rubber seals

8. Frames, profiles 42x92NOR

9. Bottom section, pine wood 42x92NOR

10. Door thickness 40mm

Schema

OPTIMAL Line

M size
modul
Door leafsize
dørplademål
Frame outside dimensions
udv. karmmål
Door way
murhulmål
19 x 9 M 1840 x 825 1889 x 886 1900 x 900
19 x 10 M 1840 x 925 1889 x 986 1900 x 1000
20 x 9 M 1940 x 825 1989 x 886 2000 x 900
20 x 10 M 1940 x 925 1989 x 986 2000 x 1000
21 x 9 M 2040 x 825 2089 x 886 2100 x 900
21 x 10 M 2040 x 925 2089 x 986 2100 x 1000

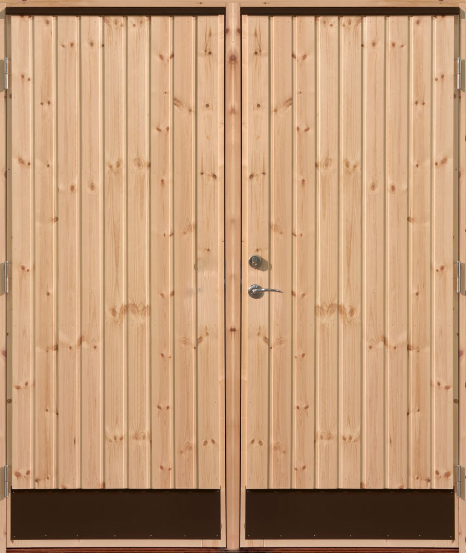

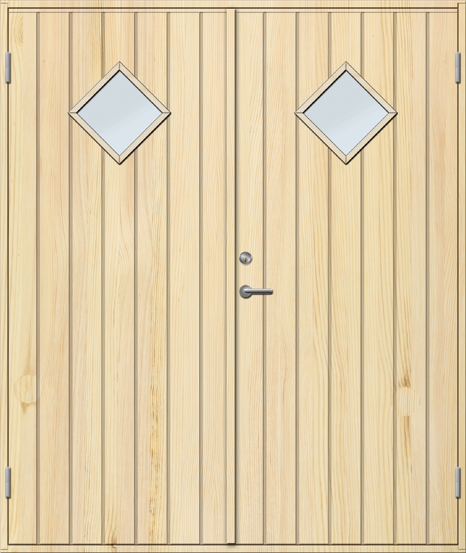

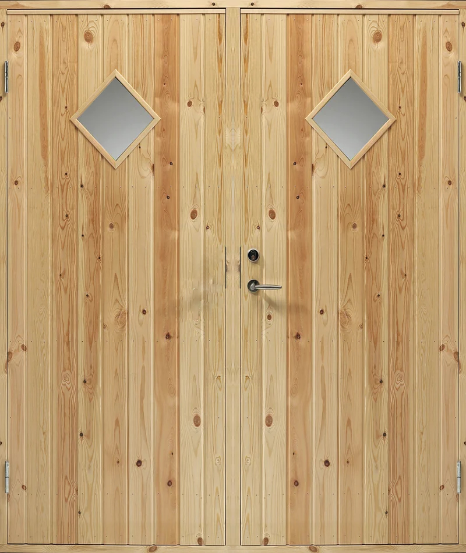

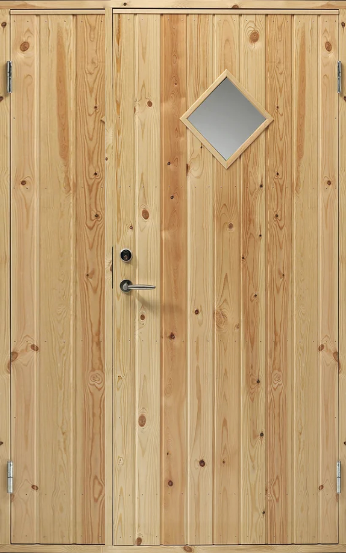

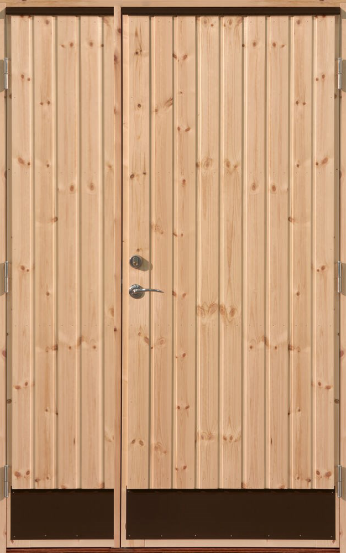

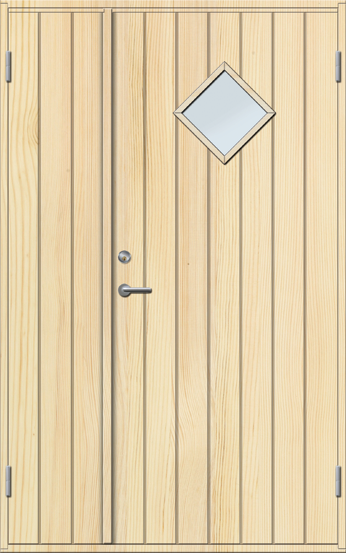

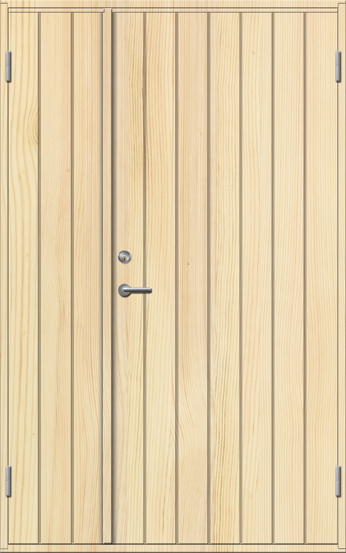

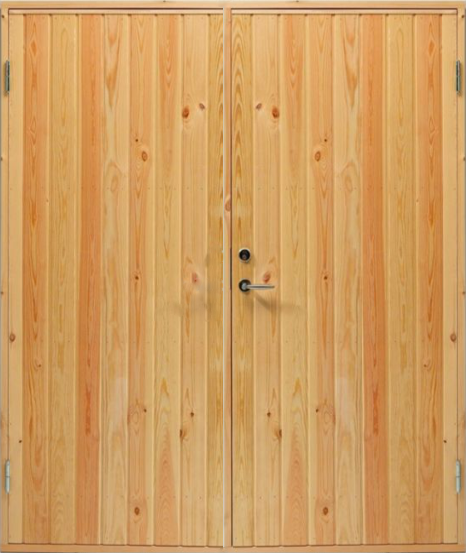

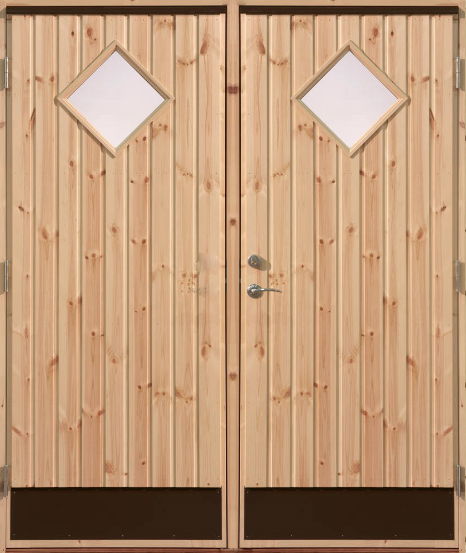

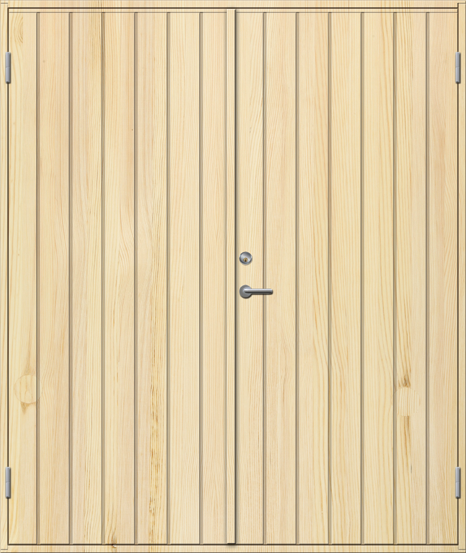

Double door selection

M size
modul
Door leafsize
dørplademål
Frame outside dimensions
udv. karmmål
Door way
murhulmål
19 x 13 M 1840 x 661/561f 1889 x 1286 1900 x 1300
19 x 14 M 1840 x 711/661f 1889 x 1386 1900 x 1400
19 x 15 M 1840 x 761/761f 1889 x 1486 1900 x 1500
19 x 13.9 M 1840 x 925/409f 1889 x 1398 1900 x 1412
19 x 14.9 M 1840 x 925/509f 1889 x 1498 1900 x 1512
19 x 17 M 1840 x 825/825f 1889 x 1714 1900 x 1728
19 x 19 M 1840 x 925/925f 1889 x 1914 1900 x 1928
20 x 13 M 1940 x 661/561f 1989 x 1286 2000 x 1300
20 x 14 M 1940 x 711/661f 1989 x 1386 2000 x 1400
20 x 15 M 1940 x 761/761f 1989 x 1486 2000 x 1500
20 x 13.9 M 1940 x 925/409f 1989 x 1398 2000 x 1412
20 x 14.9 M 1940 x 925/509f 1989 x 1498 2000 x 1512
20 x 17 M 1940 x 825/825f 1989 x 1714 2000 x 1728
20 x 19 M 1940 x 925/925f 1989 x 1914 2000 x 1928
21 x 13 M 2040 x 661/561f 2089 x 1286 2100 x 1300
21 x 14 M 2040 x 711/661f 2089 x 1386 2100 x 1400
21 x 15 M 2040 x 761/761f 2089 x 1486 2100 x 1500
21 x 13.9 M 2040 x 925/409f 2089 x 1398 2100 x 1412
21 x 14.9 M 2040 x 925/509f 2089 x 1498 2100 x 1512
21 x 17 M 2040 x 825/825f 2089 x 1714 2100 x 1728
21 x 19 M 2040 x 925/925f 2089 x 1914 2100 x 1928

Danish market profile


M size
modul
Door leafsize
dørplademål
Frame outside dimensions
udv. karmmål
Door way
murhulmål
19,1 x 9,1 M 1816 x 827 1878 x 888 1910 x 910
20,1 x 9,1 M 1916 x 827 1978 x 888 2010 x 910
20,8 x 9,7 M 1988 x 887 2050 x 948 2080 x 970
21,1 x 9,1 M 2016 x 827 2078 x 888 2110 x 910
21,45 x 9,7 M 2067 x 887 2115 x 948 2145 x 970
21,45 x 9,7 M 2067 x 887 2115 x 948 2145 x 970

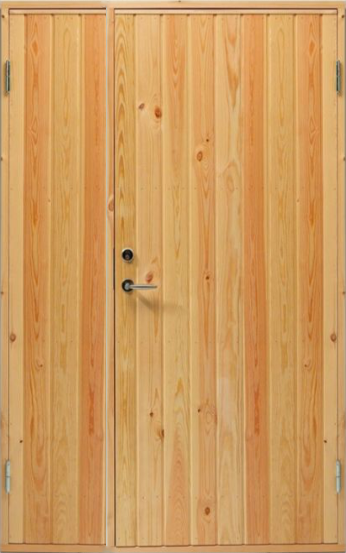

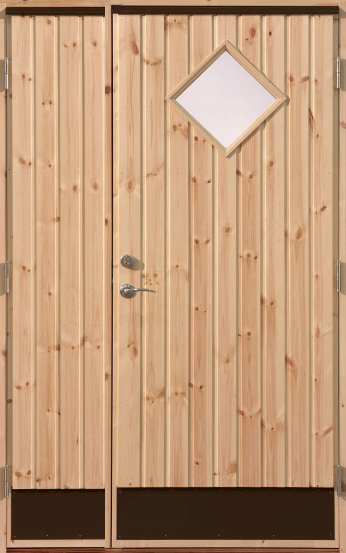

Danish market profile, double door selection

M size
modul
Door leafsize
dørplademål
Frame outside dimensions
udv. karmmål
Door way
murhulmål
19,1 x 13,5 M 1816 x 381f/887 1878 x 1332 1910 x 1350
19,1 x 15,5 M 1816 x 581f/887 1878 x 1532 1910 x 1546
19,1 x 17,5 M 1816 x 825f/887 1878 x 1776 1910 x 1790
20,1 x 13,5 M 1916 x 381f/887 1978 x 1332 2010 x 1350
20,1 x 15,5 M 1916 x 581f/887 1978 x 1532 2010 x 1546
20,1 x 17,5 M 1916 x 825f/887 1978 x 1776 2010 x 1790
20,8 x 13,5 M 1988 x 381f/887 2048 x 1332 2080 x 1350
20,8 x 15,5 M 1988 x 581f/887 2048 x 1532 2080 x 1546
20,8 x 17,5 M 1988 x 825f/887 2048 x 1776 2080 x 1790
21,45 x 13,5 M 2067 x 381f/887 2115 x 1332 2145 x 1350
21,45 x 15,5 M 2067 x 581f/887 2115 x 1532 2145 x 1546
21,45 x 17,5 M 2067 x 825f/887 2115 x 1776 2145 x 1790
